2013 Audi Q5 Front Bumper Mould

Warranty: 1 Year
Shaping Mode: Injection Mould
Surface Finish Process: Polishing
Mould Cavity: Single Cavity
Plastic Material: PP EPDM
Process Combination Type: Single-Process Mode
Detailed Information Details Description Mold Video

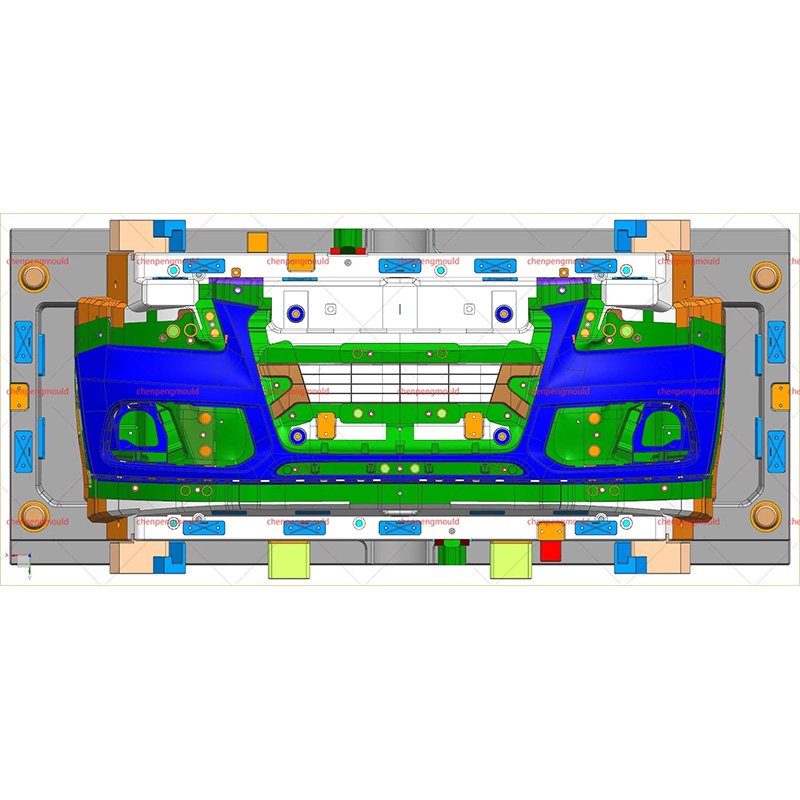

Mould Name Audi Q5 Car Front Bumper Mould
Material PP+EPDM(Contraction: 1, 5%)
Bumper Size 1800*510*460mm
Steel For Cavity &. Core P20
Mould Base C45
NOs. of Cavity 1*1
Injection System Yudo 5 direct injection gates
Ejection System Ejector pins, angle lifters
Mould Standard OEM/HASCO
Mould Estimated Size 2250 x 900 x 1050mm
Mould Weight 13500KG
Injection Machine Size 1850T
Mould Lifetime 5years
Mould manufacturer Time 50--90days
Unveiling Excellence: The 2013 Audi Q5 Front Bumper Mould

Our Advantage:
1.We have developed about 1000 PCS bumper mould since we founded.
2.Our company's mould structure is more reasonable and our bumpers are optimized.The mould we developed with a lower cost can produce the same or better product .
3.Fast production speed,high efficiency.Our delivery time is 30% shorter comparing to other suppliers
4.Our product design concept is to reduce the use of oil cylinder, by using mould mechanical structure to return, so as to improve production efficiency. According to our current design, the production speed can be increased by 30%.
5.Our company emphasize the high precision and tight tolerances of the mould.which are crucial for maintaining consistency and quality in the molded bumpers.

Order Process
1. Send us the drawing with specifications, such as the quality, mould life and others requirements.
2. Get a quote from us with Front Bumper Mould costs and basis information and part prices.
3. Negotiation of the quality, price, material, delivery time, payment term and others.
4. Confirm and Place an order with first down payment.
5. We will estimate and analyze your project and provide a DFM to you for making sure it's good to make mould and production.
6. Send mold design for customer approval before making mould.
7. Order materials and begin to machining, update the manufacturing information once a week.
8. Assemble the Automotive Front Bumper Mould and have a try out for some First samples.
9. Self- inspecting and send the samples with our inspection report to customer for confirmation.
7. If the first sample comes out satisfied, the mold finished. If not, we would improve or modify it until meeting customer's
requirements.
8. Producing and delivery of goods by ocean or by air according customer's requirement.

Chenpeng 23-year quality guarantee

Automotive Mold Production Experts Around You

Taizhou Huangyan Chenpeng Mold Co., Ltd. is a professional wholesale 2013 Audi Q5 Front Bumper Mould supplier and quality 2013 Audi Q5 Front Bumper Mould factory in China. The company′s main business is the manufacturing and development of automotive exterior and interior mold and modified bumper mold, with strong forward product design and development capabilities. The company has strong experience in the design and development of automotive injection molds since 2000. The founder Mr. Yimin Jin of the company is well-known in the industry and has invented and created various structural designs of bumper molds, Structural design professional industry.
